WATCHDOG分析
linux 内核版本4.4.58
watchdog初始化
igb网卡驱动在igb_probe函数中调用register_netdev-->register_netdevice-->dev_init_scheduler，完成网络设备watchdog的初始化，从这里可以看出watchdog只是一个定时器。
igb_probe:
netdev->watchdog_timeo = 5 * HZ;
err = register_netdev(netdev);
register_netdev:
register_netdevice:
dev_init_scheduler:
void dev_init_scheduler(struct net_device *dev)
{
dev->qdisc = &noop_qdisc;
netdev_for_each_tx_queue(dev, dev_init_scheduler_queue, &noop_qdisc);
if (dev_ingress_queue(dev))
dev_init_scheduler_queue(dev, dev_ingress_queue(dev), &noop_qdisc);
setup_timer(&dev->watchdog_timer, dev_watchdog, (unsigned long)dev);
}
启用watchdog
igb网卡被UP时通过netif_carrier_on-->__netdev_watchdog_up启动watchdog。
netif_carrier_on：
__netdev_watchdog_up：
void __netdev_watchdog_up(struct net_device *dev)
{
if (dev->netdev_ops->ndo_tx_timeout) {
if (dev->watchdog_timeo <= 0)
dev->watchdog_timeo = 5*HZ;
if (!mod_timer(&dev->watchdog_timer,
round_jiffies(jiffies + dev->watchdog_timeo)))
dev_hold(dev);
}
}
超时处理dev_watchdog
当watchdog发现网卡处于up状态并且发送队列处于停止时间大于5秒时将触发看门狗机制，
dev_watchdog先找到停止的队列，然后调用igb_tx_timeout整个网卡队列做超时处理，igb_tx_timeout中对网卡做了DOWN、UP的操作。
static void dev_watchdog(unsigned long arg)
{
struct net_device *dev = (struct net_device *)arg;
netif_tx_lock(dev);
if (!qdisc_tx_is_noop(dev)) { //txq->qdisc不是noop_qdisc
if (netif_device_present(dev) && //网卡设备还存在
netif_running(dev) && // 网卡设备还在运行
netif_carrier_ok(dev)) { //网卡设备在线
int some_queue_timedout = 0;
unsigned int i;
unsigned long trans_start;
for (i = 0; i < dev->num_tx_queues; i++) {
struct netdev_queue *txq;
txq = netdev_get_tx_queue(dev, i);
/*
* old device drivers set dev->trans_start
*/
trans_start = txq->trans_start ? : dev->trans_start;
if (netif_xmit_stopped(txq) && //发送队列是停止状态
time_after(jiffies, (trans_start +
dev->watchdog_timeo))) { //发送队列停止超过5秒
some_queue_timedout = 1;
txq->trans_timeout++;
break;
}
}
if (some_queue_timedout) {
WARN_ONCE(1, KERN_INFO "NETDEV WATCHDOG: %s (%s): transmit queue %u timed out\n",
dev->name, netdev_drivername(dev), i);
dev->netdev_ops->ndo_tx_timeout(dev); //超时处理函数
}
if (!mod_timer(&dev->watchdog_timer,
round_jiffies(jiffies +
dev->watchdog_timeo)))
dev_hold(dev);
}
}
netif_tx_unlock(dev);
dev_put(dev);
}
static const struct net_device_ops igb_netdev_ops = {
.ndo_open = igb_open,
.ndo_stop = igb_close,
.ndo_start_xmit = igb_xmit_frame,
... ...
.ndo_tx_timeout = igb_tx_timeout,
... ...
}
igb_tx_timeout:
schedule_work(&adapter->reset_task);
igb_reset_task:
netdev_err(adapter->netdev, "Reset adapter\n");
igb_reinit_locked:
igb_down
igb_up
dev_watchdog超时触发条件
条件：网卡处于up状态、发送队列处于停止状态并且停止时间大于5秒。
网卡发送队列停止的条件:当发送队列满(会有一定的预留值)的时候，将停止发送。
发送队列停止条件：
igb_xmit_frame_ring:
igb_maybe_stop_tx(tx_ring, count + 3):
static inline int igb_maybe_stop_tx(struct igb_ring *tx_ring, const u16 size)
{
if (igb_desc_unused(tx_ring) >= size) //当发送队列剩余空间大于最小预留值时，不停止发送队列
return 0;
return __igb_maybe_stop_tx(tx_ring, size);
}
//先停止发送队列，再次判断发送队列剩余空间，若剩余空间大于最小预留值，则重新启动发送队列
static int __igb_maybe_stop_tx(struct igb_ring *tx_ring, const u16 size)
{
struct net_device *netdev = tx_ring->netdev;
netif_stop_subqueue(netdev, tx_ring->queue_index);
/* Herbert's original patch had:
* smp_mb__after_netif_stop_queue();
* but since that doesn't exist yet, just open code it.
*/
smp_mb();
/* We need to check again in a case another CPU has just
* made room available.
*/
if (igb_desc_unused(tx_ring) < size)
return -EBUSY;
/* A reprieve! */
netif_wake_subqueue(netdev, tx_ring->queue_index);
u64_stats_update_begin(&tx_ring->tx_syncp2);
tx_ring->tx_stats.restart_queue2++;
u64_stats_update_end(&tx_ring->tx_syncp2);
return 0;
}
发送队列停止时间如何确定：
把最后一个数据包的发送时间作为发送队列停止的时间。每成功发送一个包都会记录当前的系统时间。
调用路径dev_hard_start_xmit-->xmit_one-->netdev_start_xmit-->txq_trans_update
static inline netdev_tx_t __netdev_start_xmit(const struct net_device_ops *ops,
struct sk_buff *skb, struct net_device *dev,
bool more)
{
skb->xmit_more = more ? 1 : 0;
return ops->ndo_start_xmit(skb, dev);
}
static inline netdev_tx_t netdev_start_xmit(struct sk_buff *skb, struct net_device *dev,
struct netdev_queue *txq, bool more)
{
const struct net_device_ops *ops = dev->netdev_ops;
int rc;
rc = __netdev_start_xmit(ops, skb, dev, more);
if (rc == NETDEV_TX_OK)
txq_trans_update(txq);
return rc;
}
static inline void txq_trans_update(struct netdev_queue *txq)
{
if (txq->xmit_lock_owner != -1)
txq->trans_start = jiffies;
}
发送队列停止原因
发送队列满了导致发送队列停止。
发送队列满的原因
- 软件发送过快，瞬间将发送队列填满，但这种情况通常不会触发看门狗机制。
- cpu繁忙对clean tx irq响应不及时。
- 硬件网卡异常不再上报irq。
发送队列恢复

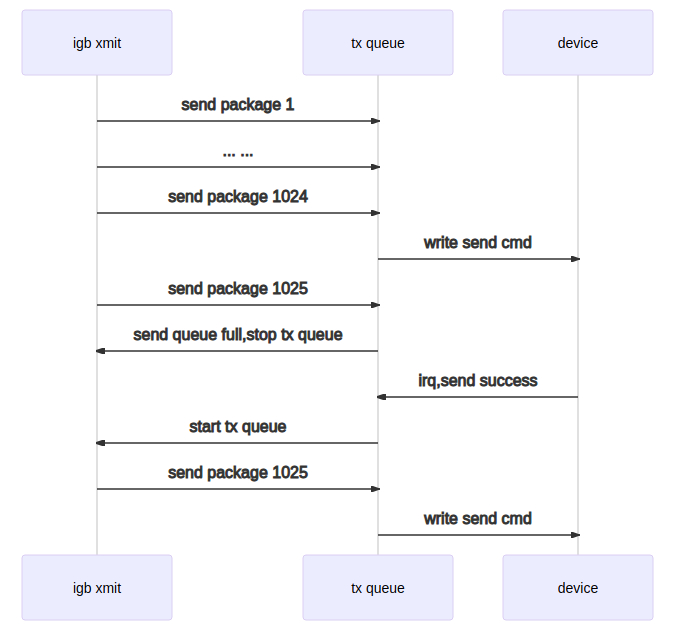

正常情况下，当igb网卡硬件完成发送之后，通过中断调用igb_msix_ring最终通过napi_schedule调用igb_poll，igb_poll函数通过调用igb_clean_tx_irq释放发送队列中发送完成的空间，当发送队列剩余空间大于预定值时重新启用发送队列。
#if (65536/PAGE_SIZE + 1) < 16
#define MAX_SKB_FRAGS 16UL
#else
#define MAX_SKB_FRAGS (65536/PAGE_SIZE + 1)
#endif
#define DESC_NEEDED (MAX_SKB_FRAGS + 4)
static bool igb_clean_tx_irq(struct igb_q_vector *q_vector)
{
... ...
#define TX_WAKE_THRESHOLD (DESC_NEEDED * 2)
if (unlikely(total_packets && //释放的包数量
netif_carrier_ok(tx_ring->netdev) && //网卡设备在线
igb_desc_unused(tx_ring) >= TX_WAKE_THRESHOLD)) { //剩余节点大于预定值
/* Make sure that anybody stopping the queue after this
* sees the new next_to_clean.
*/
smp_mb();
if (__netif_subqueue_stopped(tx_ring->netdev, //发送队列是停止状态
tx_ring->queue_index) &&
!(test_bit(__IGB_DOWN, &adapter->state))) { //网口是UP状态
netif_wake_subqueue(tx_ring->netdev, // 启用发送队列
tx_ring->queue_index);
u64_stats_update_begin(&tx_ring->tx_syncp);
tx_ring->tx_stats.restart_queue++;
u64_stats_update_end(&tx_ring->tx_syncp);
}
}
... ...
